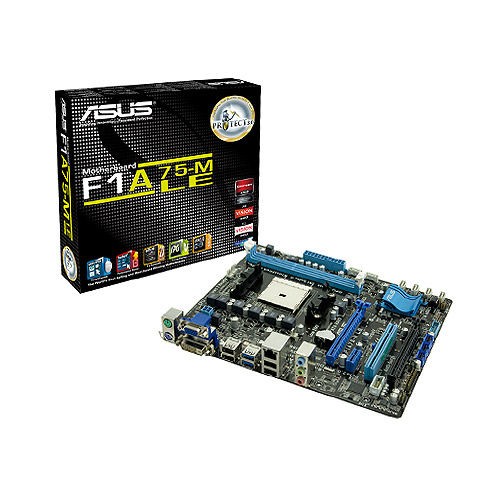

F1A75-M LE
Enjoy Graphical BIOS Control & Superb Graphics on AMD A75 Platform
UEFI BIOS - EZ Mode - Flexible & Easy BIOS Interface
AI Suite II - One-stop Access to Innovative ASUS Features
USB 3.0 & SATA 6Gb/s Support - Double Access, Double Convenience
Multi-GPU CrossFireX Support




CPU

AMD Socket FM1 A- Series/E2- Series Accelerated Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 2.0 Technology
* The AMD® Turbo Core 2.0 Technology Support depends on the APU types
ChipsetAMD A75 FCH (Hudson D3)
Memory2 x DIMM, Max. 32GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-


Buffered Memory
Dual Channel Memory Architecture
* The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS
   will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
GraphicIntegrated AMD Radeon™ HD 6000 Series Graphics in Llano APU
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
AMD® Dual Graphics technology support *1
Supports DirectX 11
Multi-GPU SupportSupports AMD CrossFireX™ Technology
Expansion Slots1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x1
1 x PCI

Storage

AMD A75 FCH (Hudson D3) chipset :
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 10, JBOD
LANRealtek® 8111E , 1 x Gigabit LAN Controller(s)
AudioRealtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB PortsAMD A75 FCH (Hudson D3) chipset :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
AMD A75 FCH (Hudson D3) chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Overclocking FeaturesOverclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS EPU :- EPU
ASUS Power Design :- 4 +2 Phase Power DesignTurboV
ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors
Back I/O Ports1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parallel port connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
AccessoriesUser's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS32 Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a
Support DiscDrivers
ASUS PC Probe II
ASUS Update
Anti-virus software (OEM version)
Form FactoruATX Form Factor
9.6 inch x 9 inch ( 24.4 cm x 22.9 cm )
